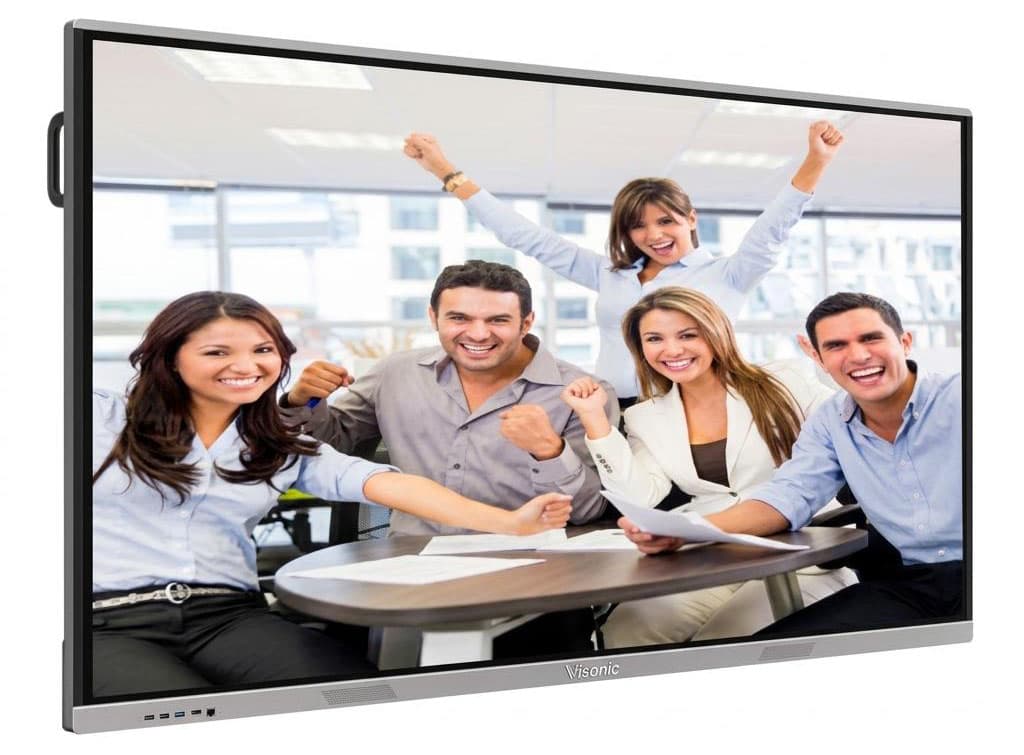

Visonic SGD86T9S Pro
Educational Interactive Flat Panel Display with Google EDLA certification
EDLA CertifiedAndroid 168GB+128GB40-Point Touch
Based on: 86" Pro EDLA Series
86"
4K UHD Interactive Display
Android 16
EDLA Certified
40-Point
Multi-Touch
8GB+128GB
Storage
Customization Overview
🏷️
Branding
Logo, boot animation, packaging, manual, remote control
📦
Software
Visonic Education Suite preloaded
🔧
Hardware
Speakers adjusted to 2 × 10W (standard 2 × 15W)
✅
Certification
Google EDLA pre-certified
Full Technical Specifications
Display System
Screen Size86"
Resolution4K UHD (3840 × 2160)
Panel TypeIPS
Brightness350 cd/m²
Contrast Ratio5000:1
Response Time8ms
Viewing Angle178° (H) / 178° (V)
Backlight TypeDLED
Lifespan≥ 50,000 hours
Glass Protection4mm Full Tempered Explosion-proof Glass
System Configuration
Operating SystemAndroid 16 (Google EDLA Certified)
CPUAmlogic T982 (8 Core)
GPUMali G52
RAM8GB DDR4
Storage128GB eMMC
Optional OPSIntel Core i5 10th Gen / 16GB / 512GB
Touch System
TechnologyInfrared Induction
Touch Points40 Points
Response Time≤ 15ms
Positioning Accuracy± 2mm
Input MethodsFinger, stylus, or nontransparent object ≥ 5mm
Driver RequiredNo (Plug & Play)
Audio & Camera
Speakers2 × 10W Front-facing Midrange
MicrophoneBuilt-in Array Microphone
Camera4MP AI Smart Camera
Connectivity
WiFi802.11ac
Bluetooth5.2
HDMIHDMI Output
USBUSB 3.2 / USB 2.0
Type-CType-C
VGAVGA
Physical Dimensions
Total Width2216.2 mm
Total Height1316.6 mm
Total Thickness106.7 mm
Display Area2157.9 × 1213.35 mm
Front Bezel25.6 mm
VESA Pattern1000 × 400 mm
Size Selection Guide
Choose the right size for your space
| Size | Display Area | Applicable Area | Number of People | Applicable Distance | Scenario |
|---|---|---|---|---|---|
| 55" | 1210×800mm | 50-100 ft² | 3-5 | 6.5 ft | Manager's Office |
| 65" | 1420×800mm | 100-200 ft² | 5-10 | 8.2 ft | President's Office |
| 75" | 1640×800mm | 150-300 ft² | 10-20 | 9.8 ft | Small Meeting Room |
| 86" | 1805×1060mm | 200-400 ft² | 15-30 | 13.1 ft | Medium Meeting Room |
✓ Current Model: 86"
Standard Accessories
- Touch Stylus Pens × 2
- Wall-mount Bracket
- Power Cord (1.5m)
- Remote Control
- User Manual
- Warranty Card
- Certificate of Conformity
Preloaded Software
Whiteboard SoftwareMath, Physics, Chemistry, Biology, Art ToolsEShare / MiracastMicrosoft Office / WPS OfficePhET Interactive SimulationsGoogle Classroom / Microsoft Teams / ZoomGoogle EarthFile ManagerAnnotation Tool
